Note that ipt­a­bles and ip6tables should be used always together!

Tables

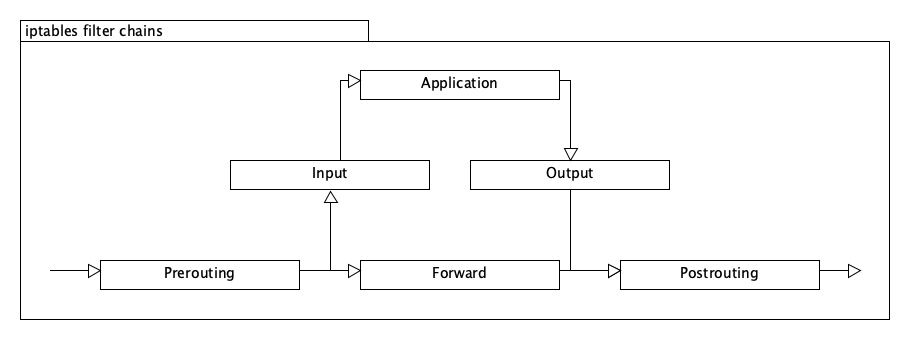

Ipt­a­bles man­ages a set of tables which act as ACL Access Con­trol Lists.

• fil­ter: default table
  • INPUT han­dles all pack­ets for this system.
  • OUTPUT han­dles all pack­ets from this system.
  • FORWARD han­dles all pack­ets which are not from nor for this system.
• nat: table for net­work translation
  • PREROUTING mod­i­fies pack­ets when they arrive.
  • POSTROUTING mod­i­fies pack­ets before they leaving.
  • OUTPUT mod­i­fies pack­ets which are from this system.
• man­gle: table for manip­u­lat­ing packets
• raw: high-pri­or­i­ty table for super­set oth­er rules
• secu­ri­ty: addi­tion­al table for tools like SELinux.

Actions

Actions are defined via the -j option.

• ACCEPT allows a packet
• REJECT rejects a packet
• DROP ignors a packet
• LOG logs a packet
• SNAT mod­i­fies the source address (only in the nat table)
• DNAT mod­i­fies the des­ti­na­tion address (only in the nat table)
• MASQUERADE mod­i­fies a pack­et (only in the nat table)

Examples

Show all rules

iptables -L
ip6tables -L

Ignore all pack­ets from a network:

iptables -A INPUT -s 192.168.5.1/32 -j DROP
ip6tables -A INPUT -s fd75:943b:5f2e:0:a4:45a1:b753:4152 -j DROP

Allow a spe­cif­ic port from everywhere:

iptables -A INPUT -p tcp --dport 80 --destination $LOCALIP -j ACCEPT
ip6tables -A INPUT -p tcp --dport 80 --destination $LOCALIP6 -j ACCEPT

Allow only pack­ets which belong to an exist­ing connection:

iptables -A INPUT --destination $LOCALIP -m state --state ESTABLISHED,RELATED -j ACCEPT
ip6tables -A INPUT --destination $LOCALIP6 -m state --state ESTABLISHED,RELATED -j ACCEPT

Persist netfilter rules

Via init script:

vi /etc/systemd/system/iptables.service
---
[Unit]
After=network.target

[Service]
Type=simple
RemainAfterExit=yes
ExecStart=/etc/init.d/iptables start
ExecStop=/etc/init.d/iptables stop
ExecReload=/etc/init.d/iptables restart

[Install]
WantedBy=multi-user.target
---
systemctl enable iptables

Or via sys­temd / networkd:

auto eth0
iface eth0 inet static
    ...
    up /etc/init.d/iptables

Measure traffic from/to a location

iptables -I INPUT 1 -s 10.10.10.10 -j ACCEPT
iptables -I OUTPUT 1 -d 10.10.10.10 -j ACCEPT
iptables -Z

Now per­form the actions. Then

iptables -nv -L
